Multi-Unit Repiping in Kitsilano

When Steve decided to address the Poly B plumbing in his Kitsilano triplex, he was undertaking one of the most comprehensive repiping projects Urban Piping has completed. His heritage property on West 6th Avenue—converted from a single-family home into three separate units—required a coordinated approach that addressed both the main supply lines serving the building and the complete plumbing systems within each unit.

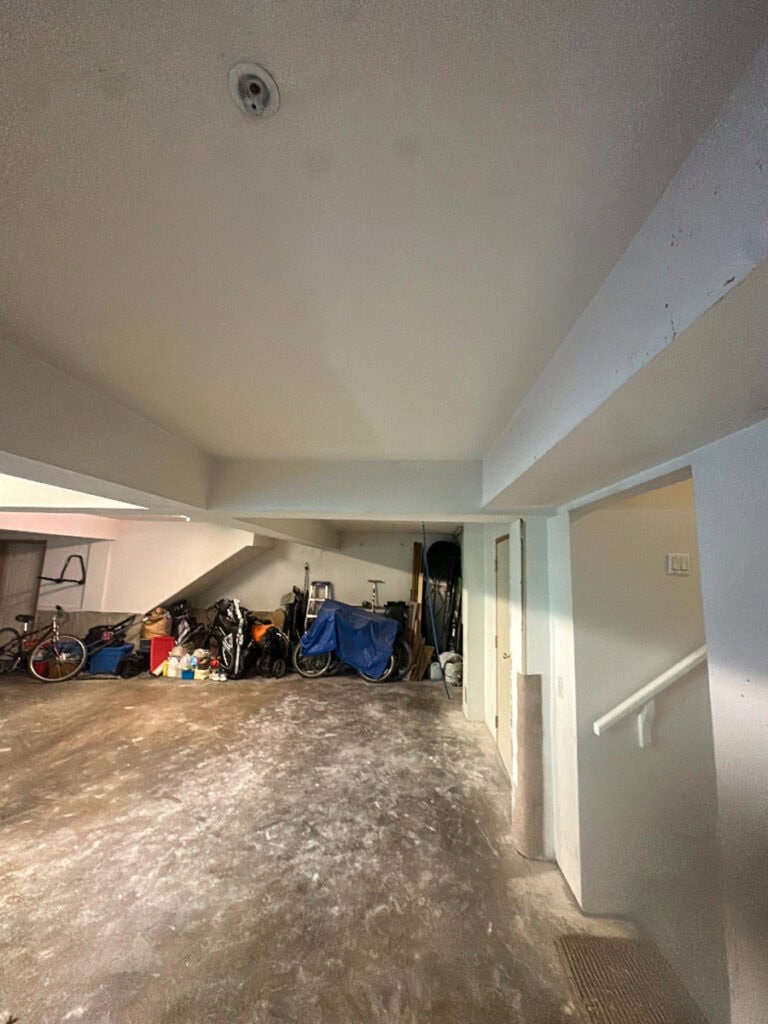

The project began with the main line work, repiping all three units’ main lines from the city connection through the garage and into each suite. This phase required careful planning and measurement, drilling and stud-finding to secure the new 3/4-inch PEX piping along its route. Each unit received new pressure-reducing valves at the point where supply lines entered the suite. Fire caulking at all penetrations between units ensured the building maintained its fire separation requirements—a critical consideration in multi-unit residential properties.

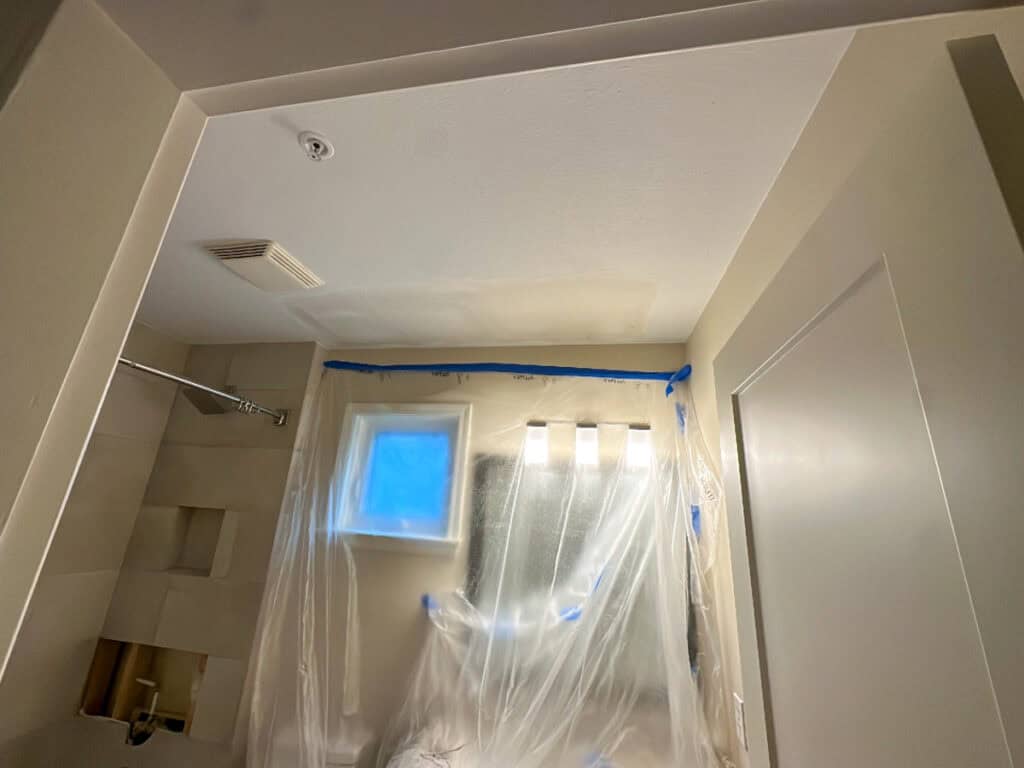

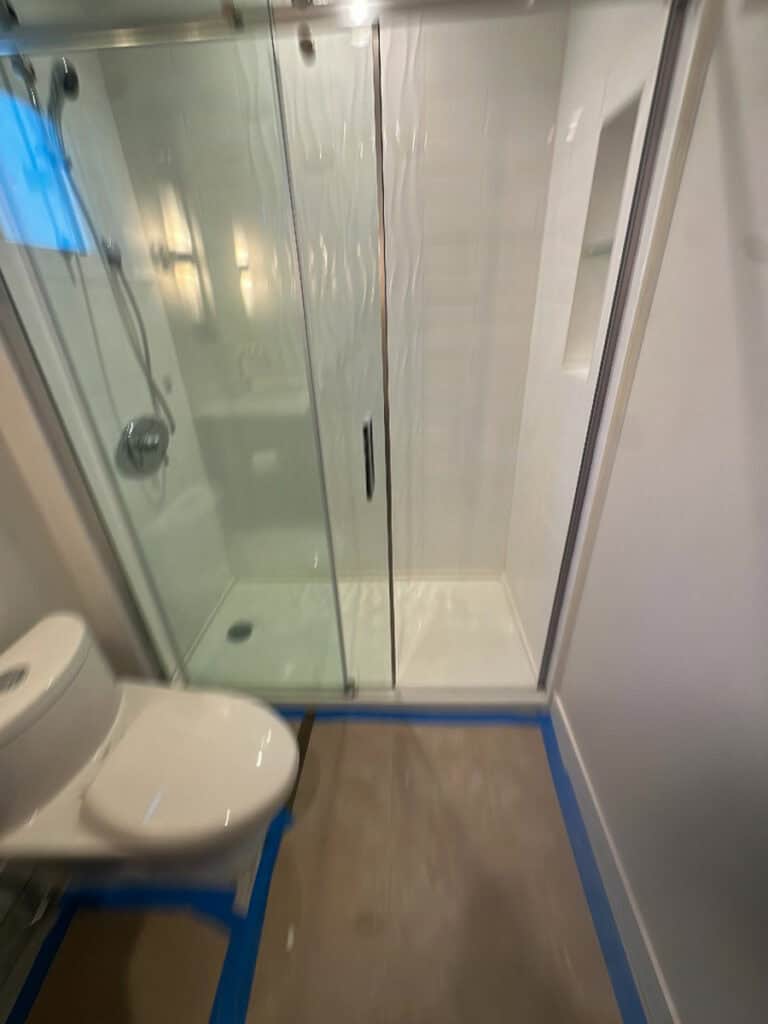

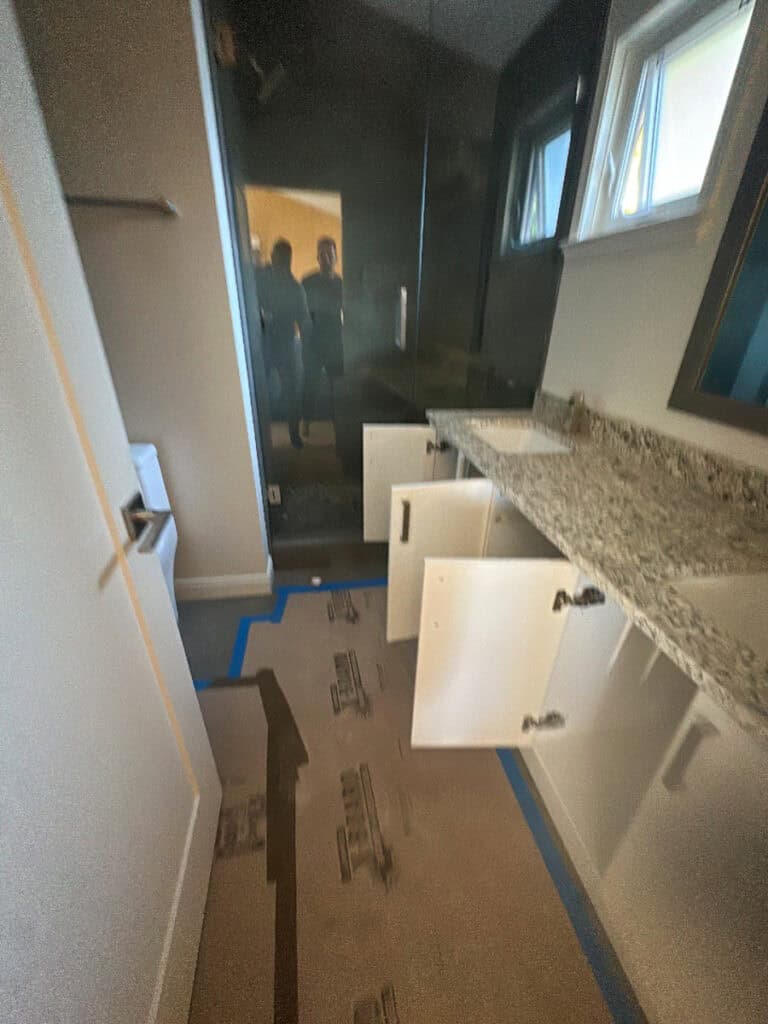

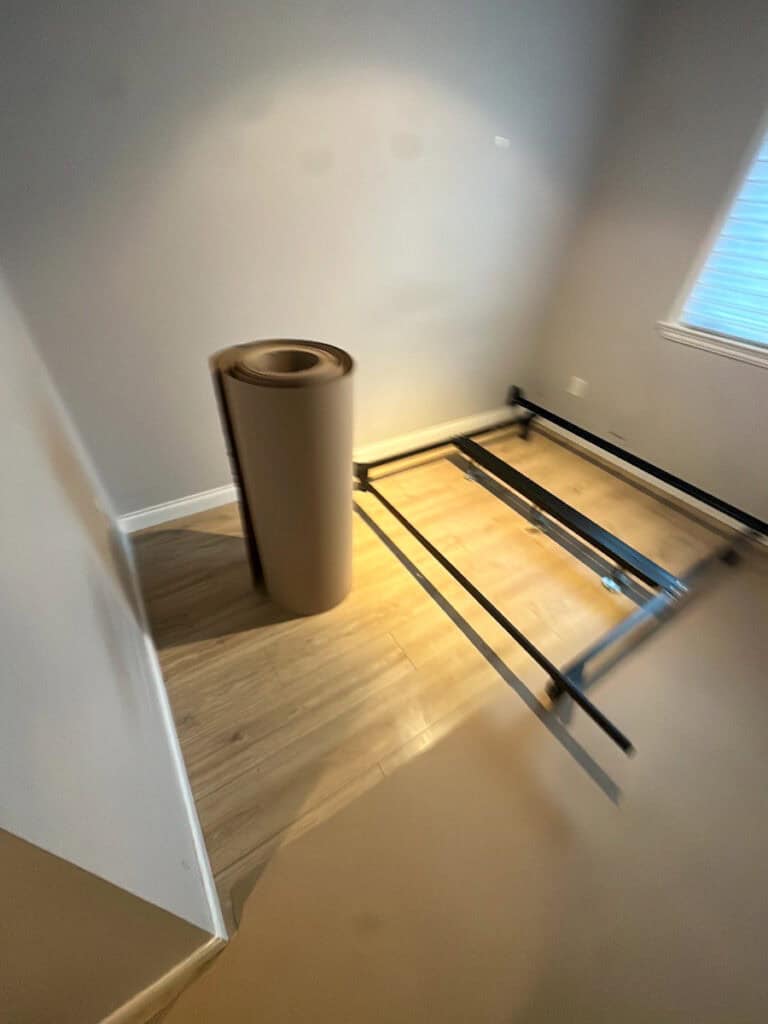

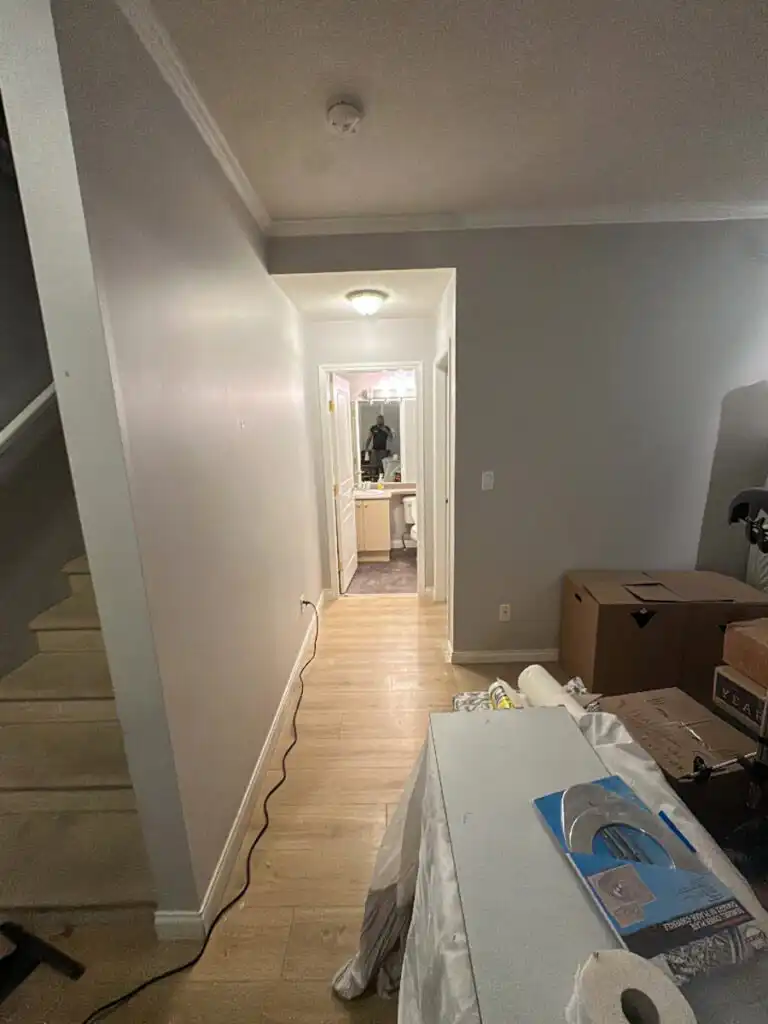

The second phase addressed the complete Poly B replacement within all three units. The Urban Piping team conducted thorough site preparation throughout the building, with high-impact Ram Board protecting tile and hardwood surfaces, professional-grade carpet liner covering traffic areas, and light plastic sheeting draped over furniture and hung from ceilings to isolate work areas and control dust migration between units.

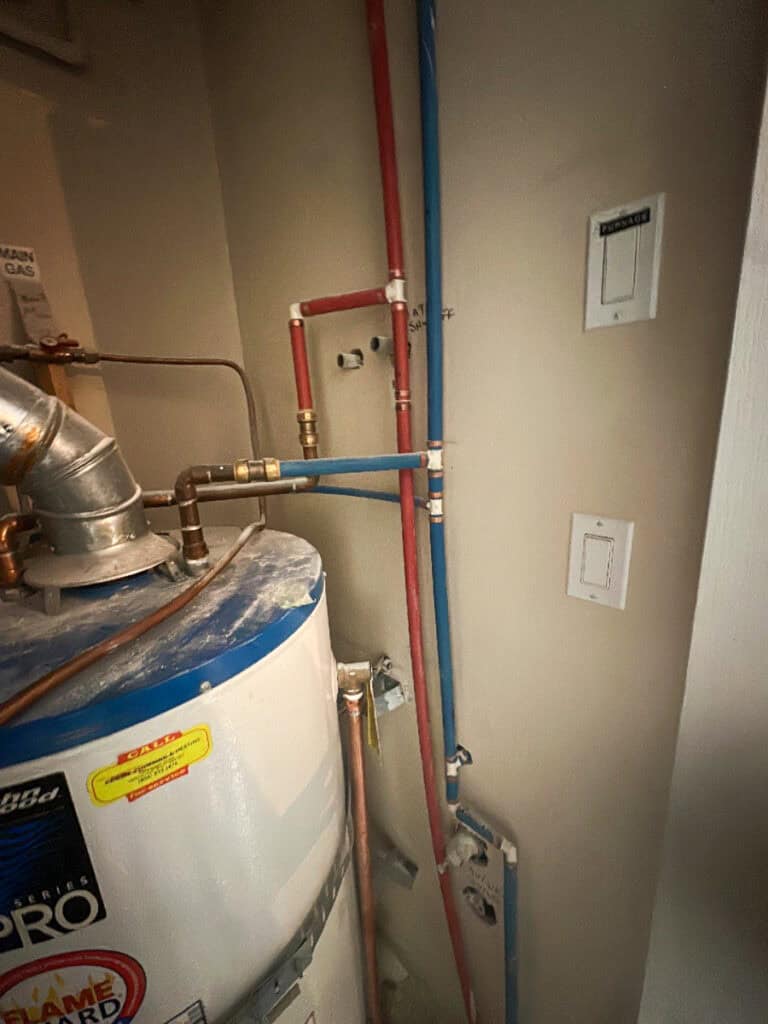

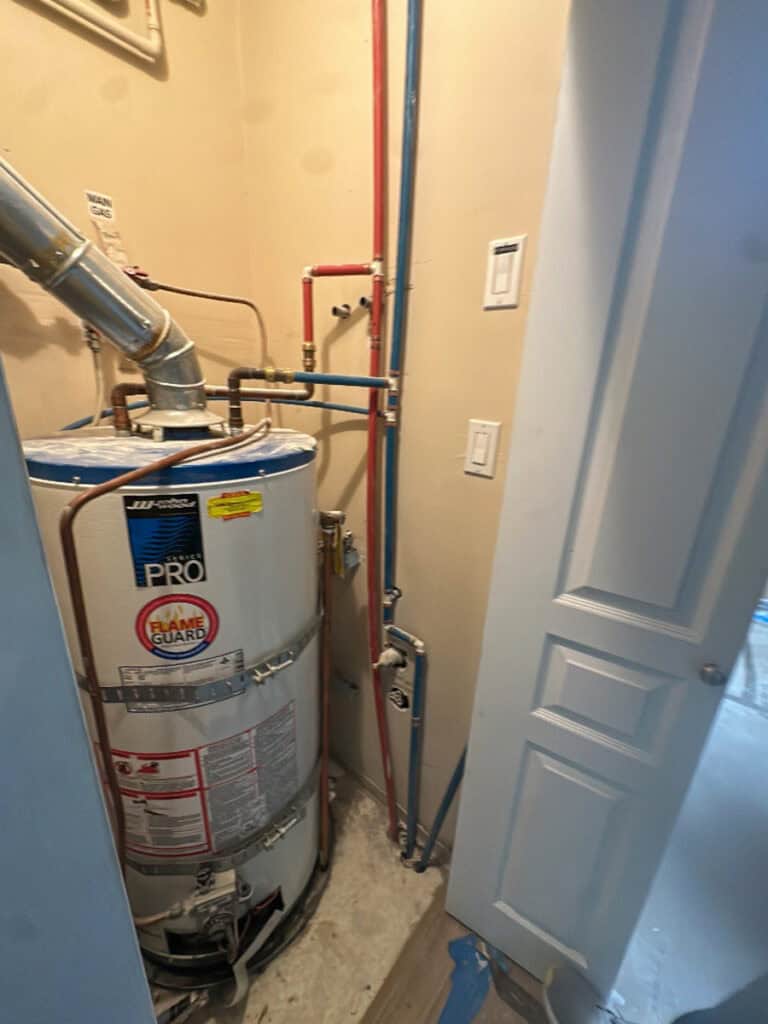

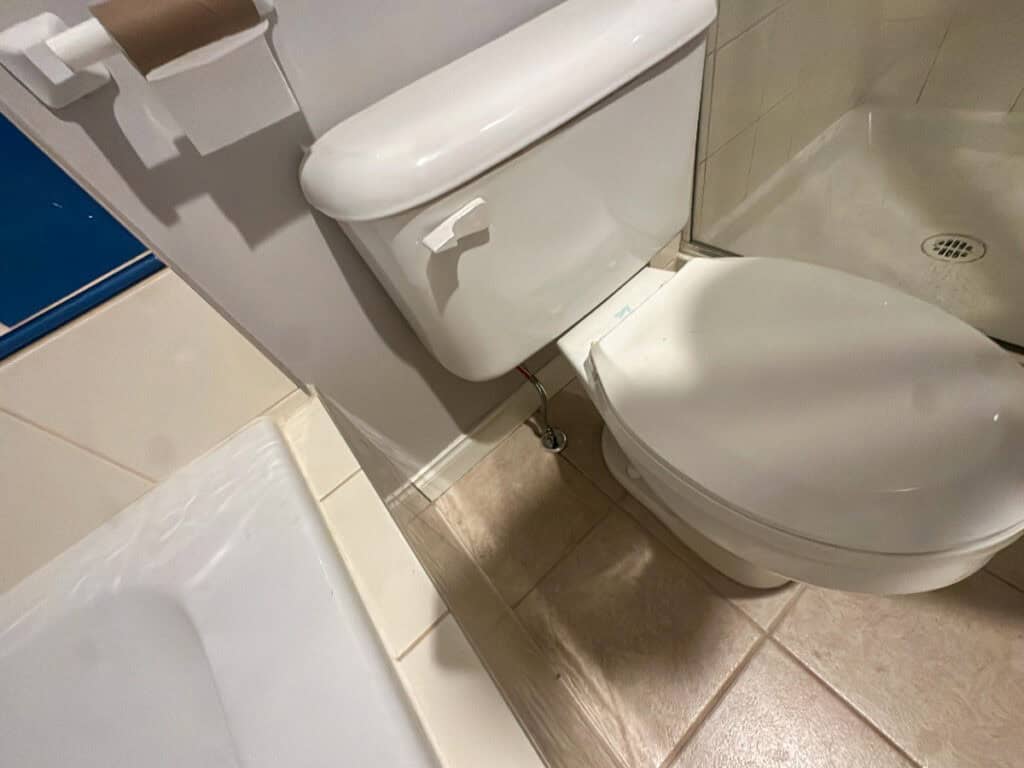

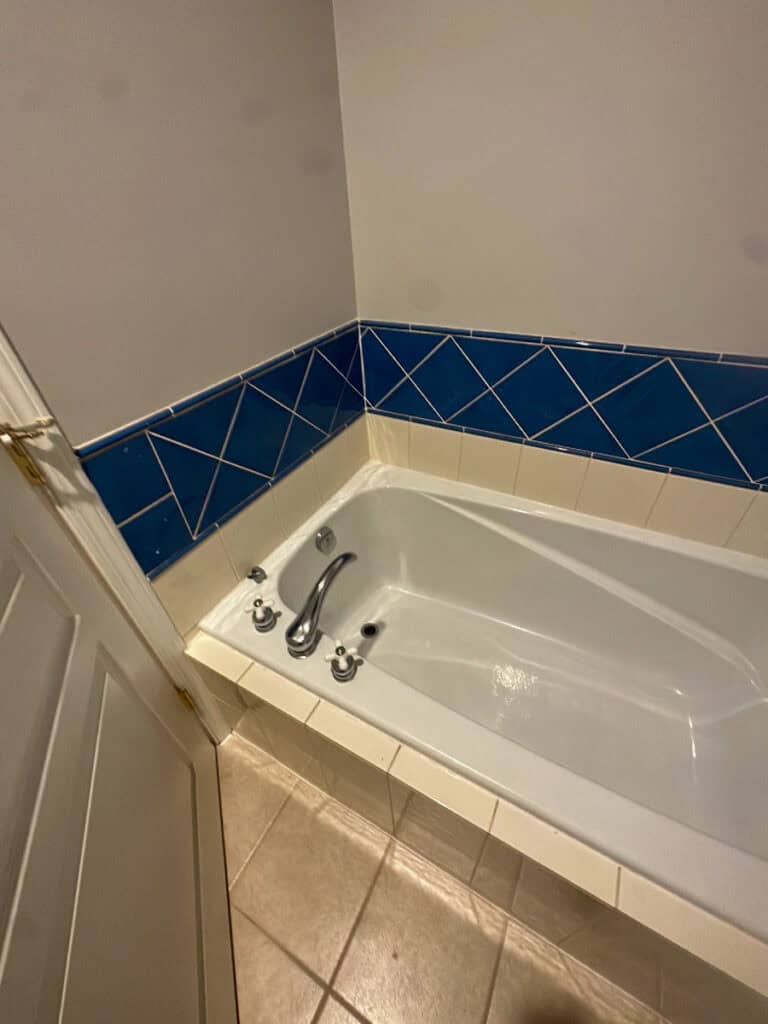

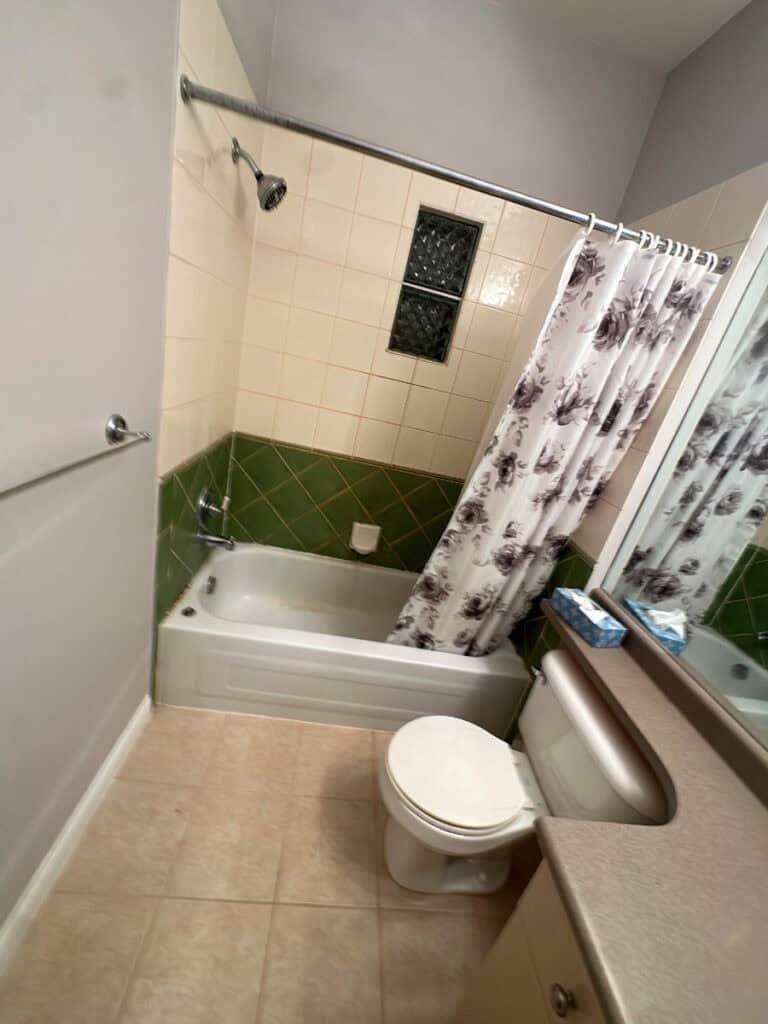

The repiping replaced all polybutylene lines with Rehau color-coded Class A PEX piping featuring UV barrier protection. Every fixture across all three units received new Dahl shut-off valves for both hot and cold supply lines, along with braided distribution hoses for faucets and toilets. Brass exterior garden faucets and city-appropriate laundry boxes completed the plumbing upgrades.

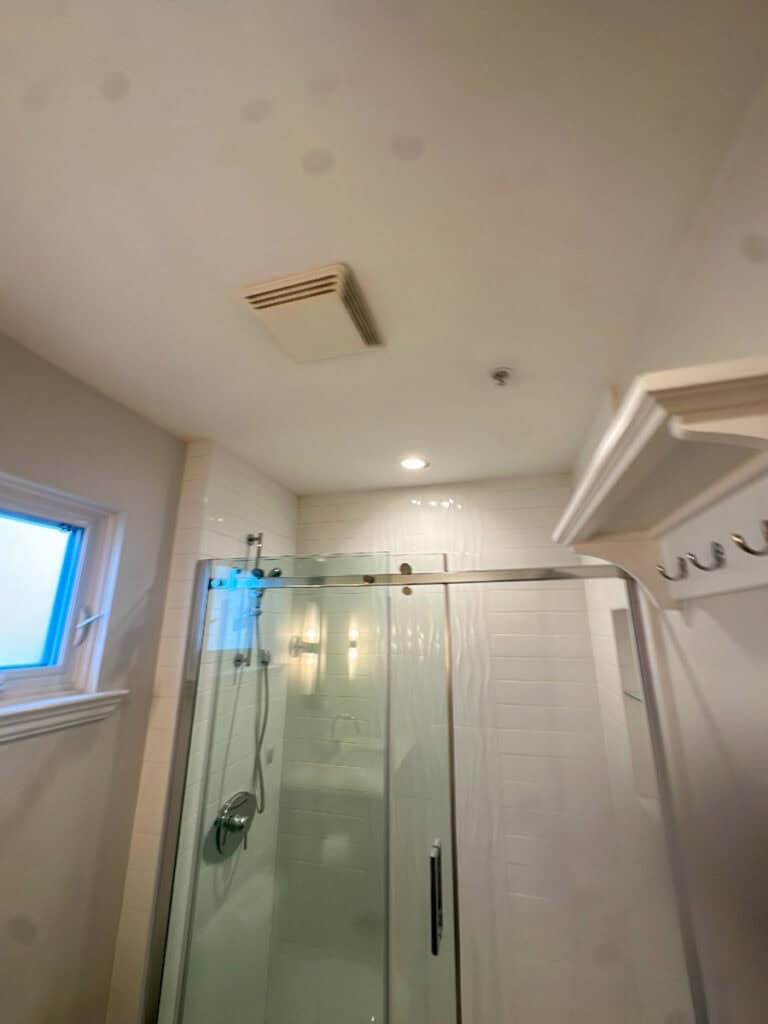

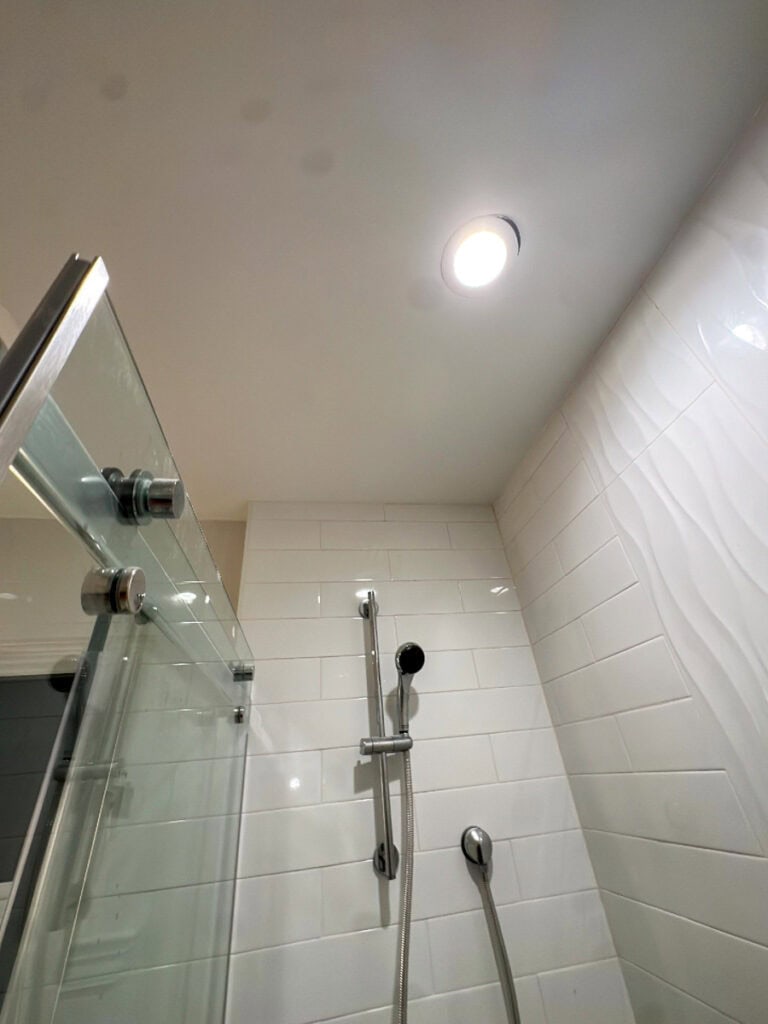

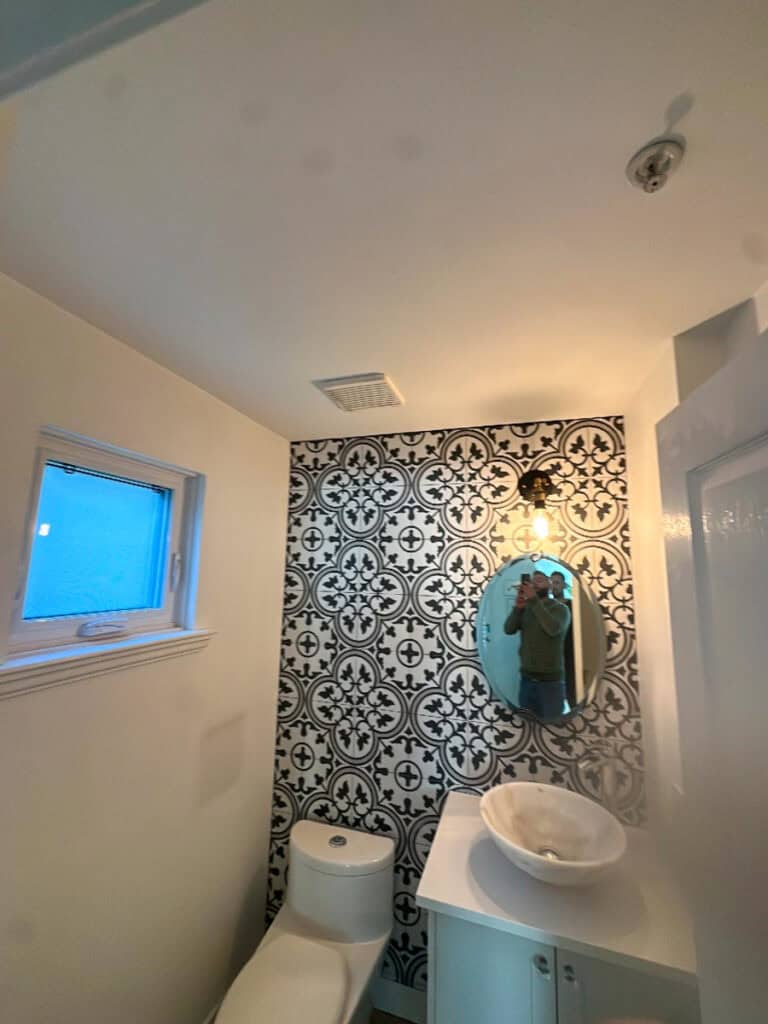

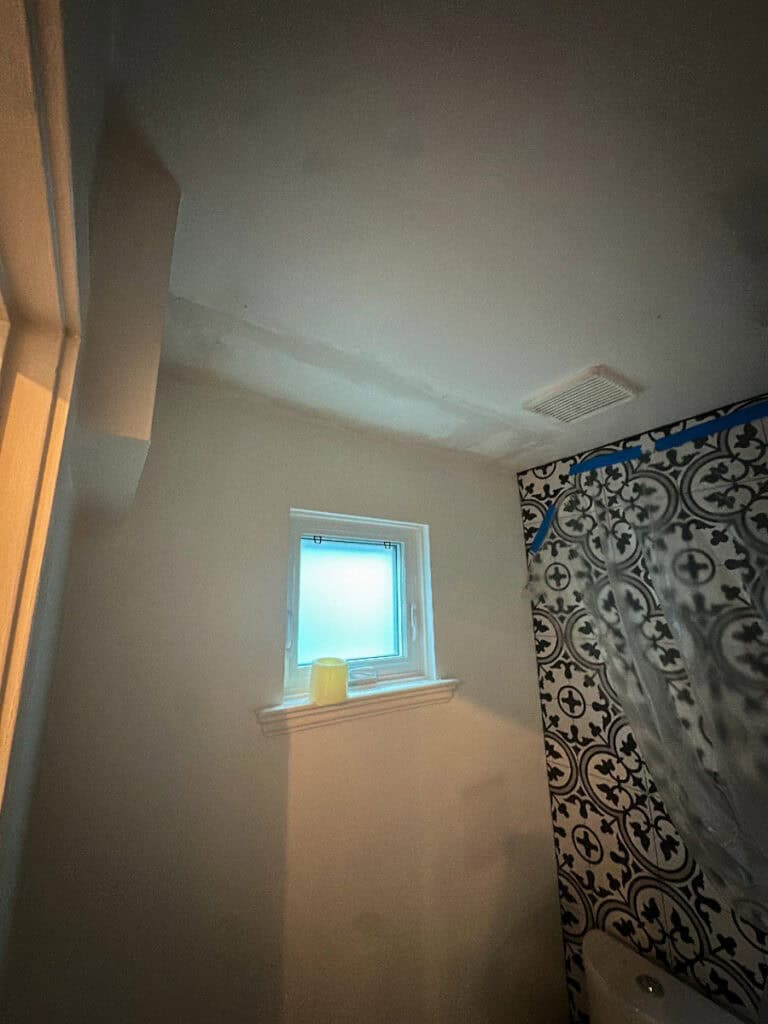

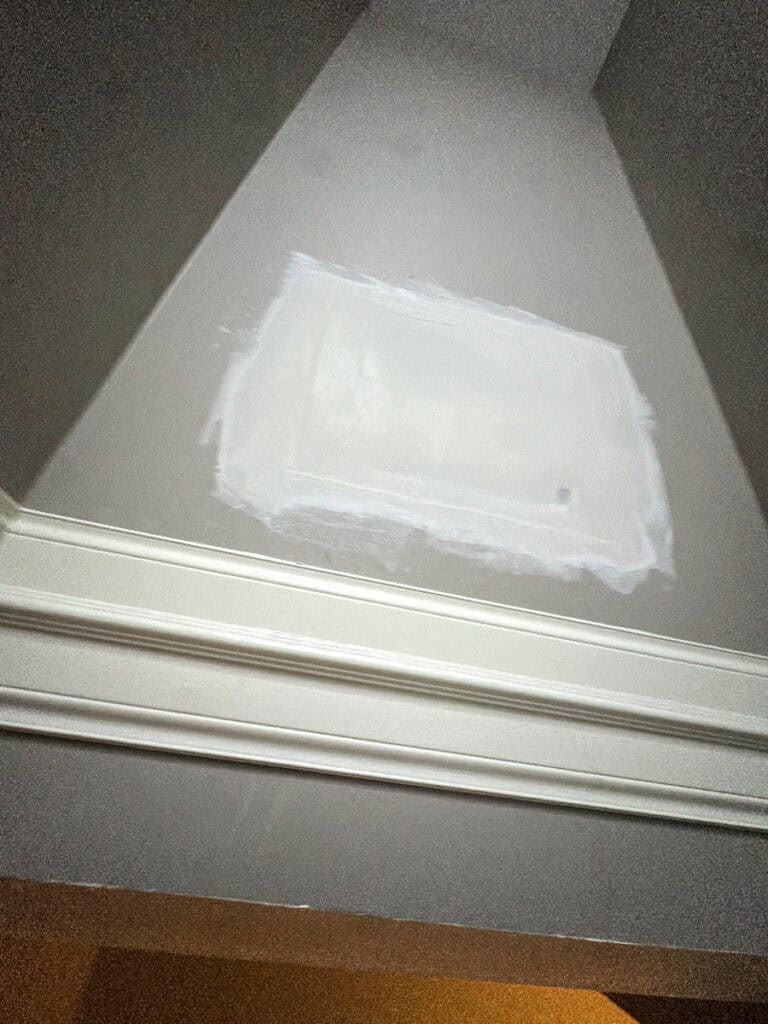

The drywall repair phase addressed numerous access points throughout the building’s three levels and multiple units. This included boarding, mudding, taping, and texture matching to restore ceilings, plus paint matching for wall repairs. A professional-grade four-stage HEPA air scrubber ran throughout the project to maintain indoor air quality.

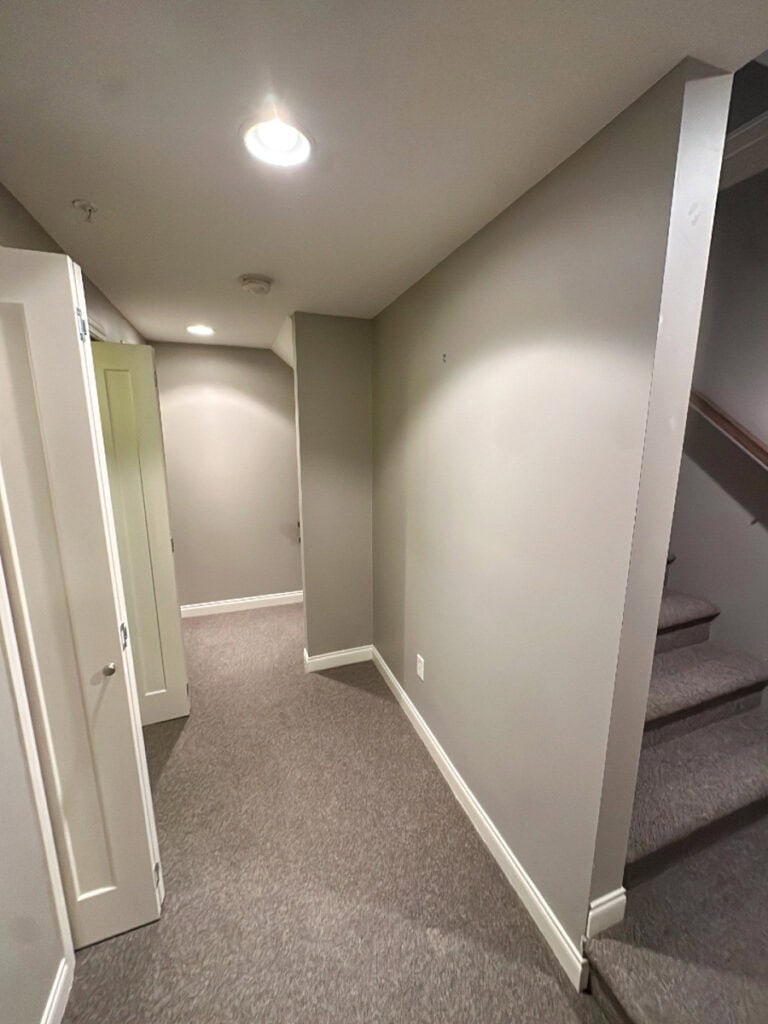

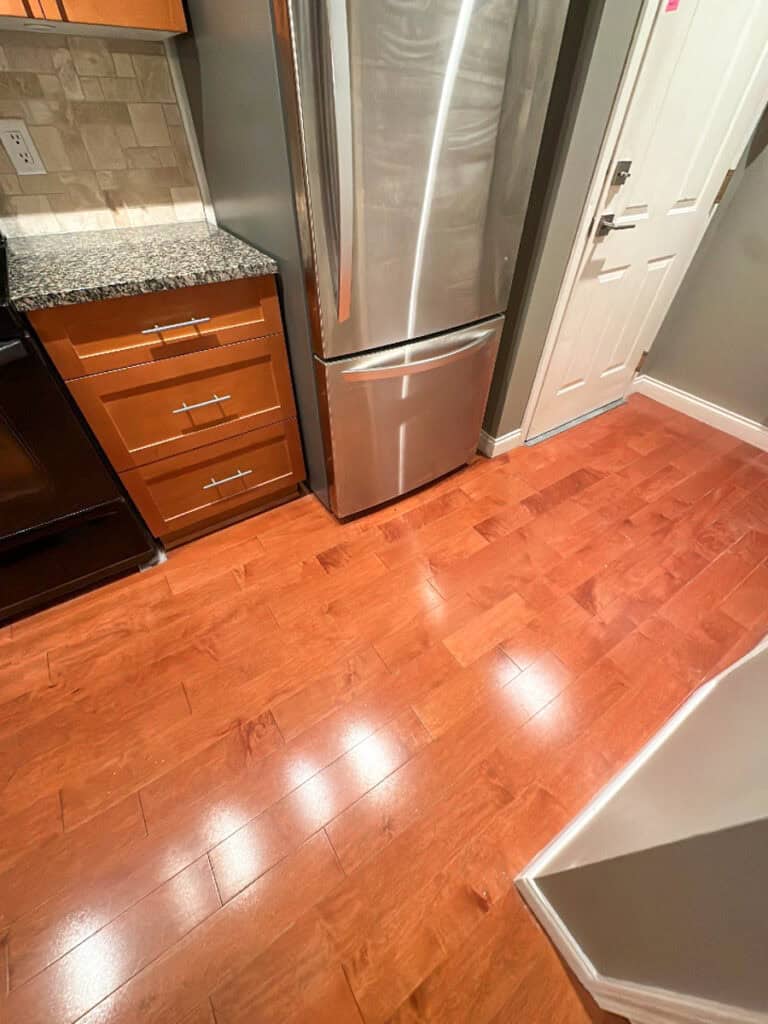

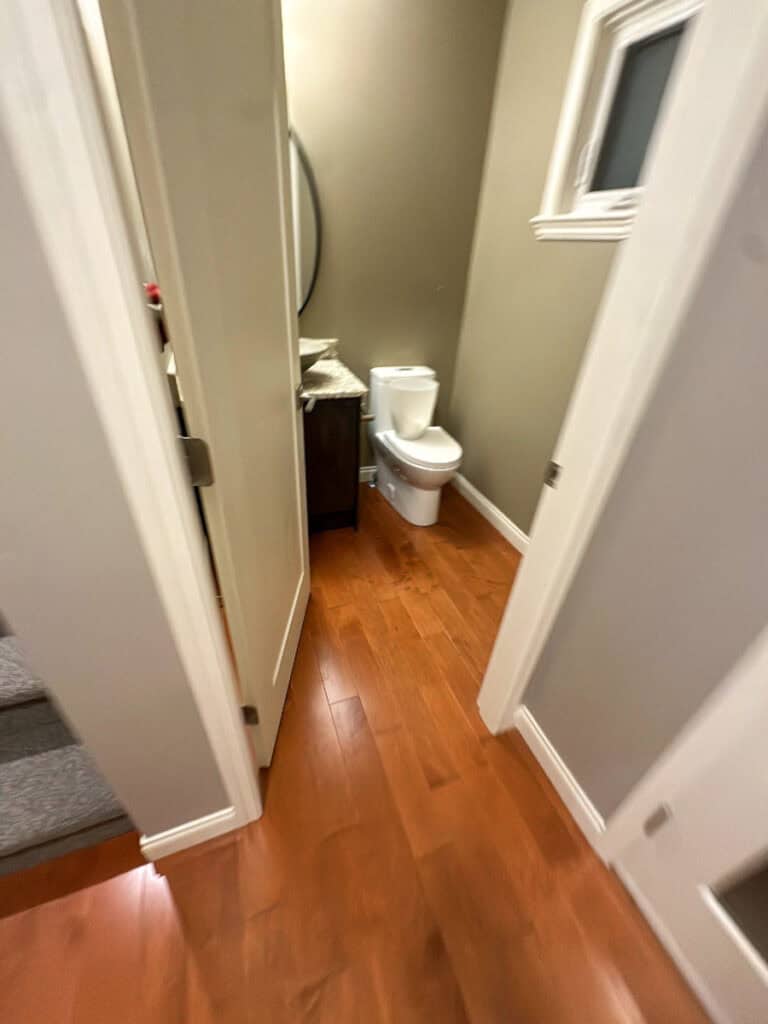

The project concluded with a thorough cleanup across all units, removing all prep materials and debris before vacuuming and wiping down each suite. For property owners considering Poly B Replacement Vancouver services in multi-unit buildings, Steve’s project demonstrates the comprehensive approach required when repiping serves not just one home but multiple residences sharing common infrastructure. This meticulous process not only enhances the living conditions for residents but also addresses potential insurance issues in Vancouver that may arise from outdated plumbing systems. By investing in comprehensive repiping, property owners can mitigate risks and ensure compliance with local regulations. Ultimately, this proactive approach safeguards the property’s value and the safety of its residents.

Kitsilano Heritage Homes and Their Plumbing History

Kitsilano, known locally as “Kits,” is one of Vancouver’s most desirable neighborhoods, stretching along the southern shore of English Bay between Burrard Street and Alma Street. The area’s housing stock tells the story of over a century of development, with particular concentrations of Craftsman-style homes along West 5th and 6th Avenues—the very streets where Steve’s property stands.

Most heritage homes in Kitsilano were built between 1910 and 1930, reflecting the Arts and Crafts movement’s emphasis on quality construction and harmony with nature. These homes feature characteristic elements including low-pitched gable roofs, wide eaves, inviting front porches, and handcrafted woodwork. However, the original plumbing in these homes—typically galvanized steel or copper—was often replaced or supplemented during subsequent decades.

Many of Kitsilano’s larger heritage homes were converted into multi-unit dwellings during and after World War II, when housing demand transformed single-family residences into rooming houses and apartments. Later conversions in the 1970s, 1980s, and 1990s created the legal duplexes and triplexes that now characterize much of the neighborhood. These conversion projects frequently included complete plumbing system updates—and those occurring between 1985 and 1997 commonly used polybutylene piping.

For properties like Steve’s triplex, this means the Poly B systems date not from the home’s original construction but from its conversion into multiple units. The polybutylene piping in these buildings is now 25 to 40 years old, well into the age range where failures become increasingly likely.

Special Requirements for Kitsilano Multi-Unit Buildings

Multi-unit buildings in Kitsilano present unique challenges that distinguish them from single-family repiping projects. Steve’s triplex illustrates the complexity contractors encounter when working in converted heritage properties with multiple residences.

Fire separation requirements are paramount in multi-unit buildings. Every pipe penetration between units must be properly fire-caulked and documented to maintain the building’s fire resistance rating. This adds both time and material requirements compared to single-family homes, but it’s essential for occupant safety and building code compliance. The main line work in Steve’s project specifically included fire caulking at all penetrations.

Coordination across multiple units adds logistical complexity. Work affecting main supply lines impacts all three units simultaneously, requiring scheduling that accommodates multiple tenants or occupants. The main line replacement must be completed before individual unit work can proceed, and pressure testing must verify system integrity serving all units.

Heritage construction presents its own considerations. Kitsilano’s Craftsman homes feature solid construction with dimensional lumber, plaster walls, and design elements worth preserving. Accessing pipes in these buildings requires care to minimize damage to original features while ensuring complete access to all polybutylene lines.

The sheer scale of multi-unit projects demands experienced contractors. Steve’s project involved significantly more linear footage of piping, more fixtures, and more access points than a typical single-family home. The drywall repair alone required extensive work across three units and multiple levels. Supply requirements, disposal volumes, and cleanup scope all scale accordingly.

For Kitsilano property owners with multi-unit buildings, these projects represent significant investments—but they protect multiple residences and their occupants from the risks associated with aging Poly B systems.
